Aluminum Coil/Strip/Foil
1060 Aluminum Coil/Strip/Foil

‹

›

‹

  • 1060 Aluminum Coil/Strip/Foil
  • 1060 Aluminum Coil/Strip/Foil
  • 1060 Aluminum Coil/Strip/Foil
  • 1060 Aluminum Coil/Strip/Foil

›

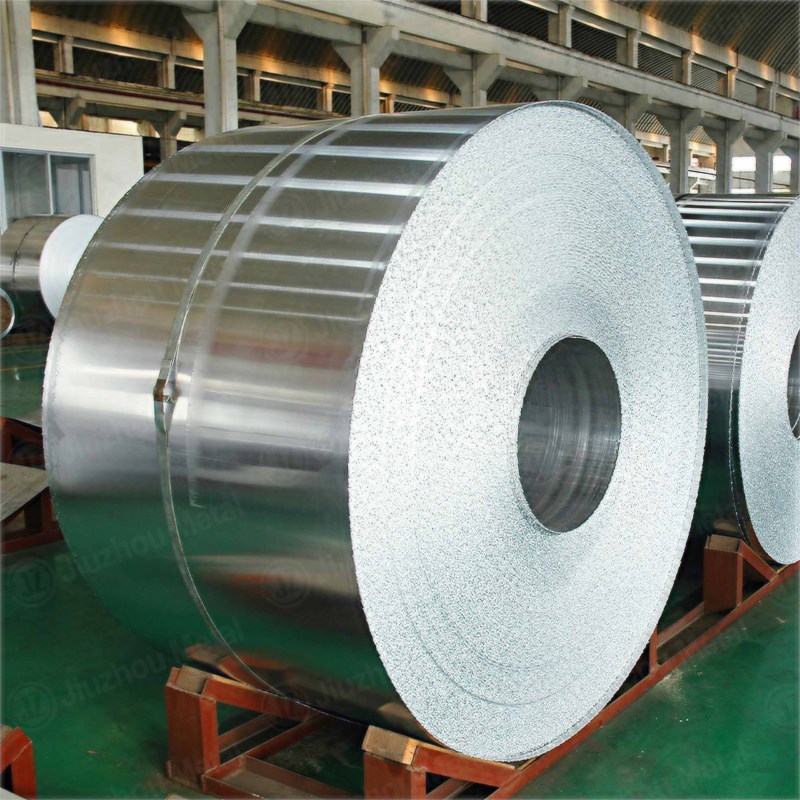

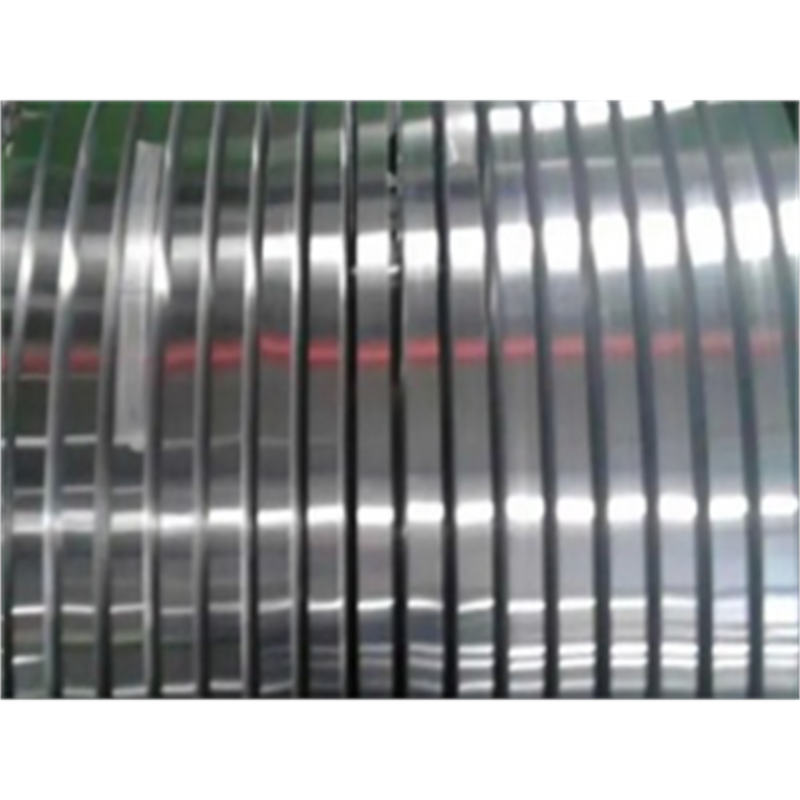

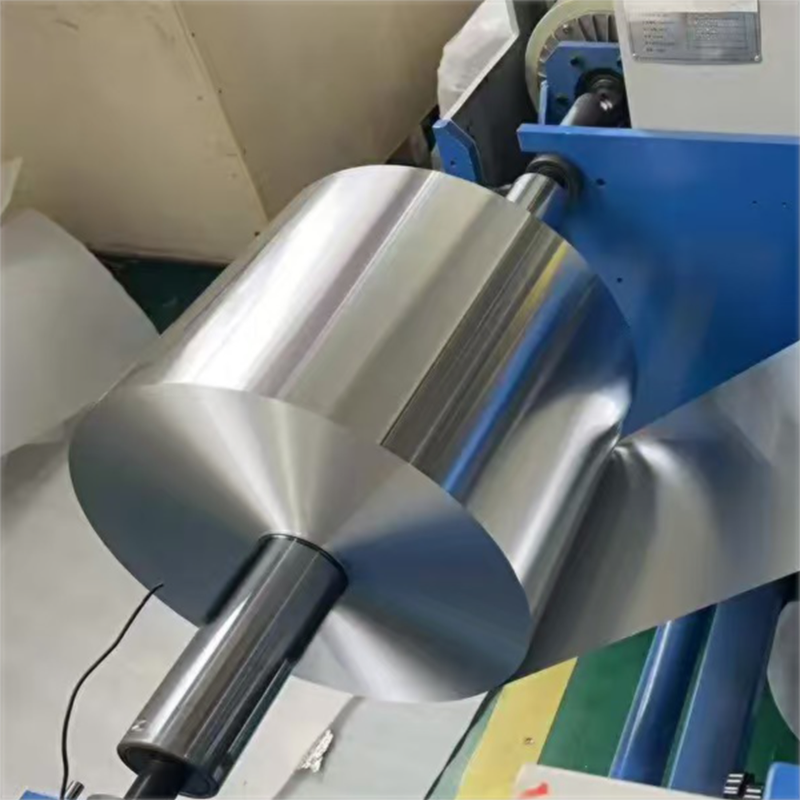

1060 Aluminum Coil, Strip, and Foil are high-purity aluminum products (minimum 99.60% Al) that excel in electrical and thermal conductivity. As a non-heat-treatable alloy, 1060 is preferred for its exceptional ductility and elongation, making it easy to process into very thin foils or narrow strips for specialized industrial uses.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

New Energy (EV)Power TransmissionElectronicsChemical & PetroHVAC & Thermal
Laboratory Equip.Lighting & OpticsConstructionPackagingConsumer Goods

Specifications Table

FeatureDetails
Product Name1060 Aluminum Coil / Strip / Foil
Thickness

Foil: 0.006 mm - 0.2 mm

Strip/Coil: 0.2 mm - 6.0 mm

Width10 mm - 2600 mm (Slit widths available upon request)
Coil Inner Diameter (ID)75 mm, 150 mm, 300 mm, 400 mm, 505 mm (Customizable)
TempersO, H14, H16, H18, H22, H24, F
Surface FinishMill finish, Color Coated (PE/PVDF), Embossed, Anodized
ProtectionInterleaved paper, clear PE/PVC protective film (for thicker coils/strips)


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade10601060EN AW-1060 / Al99.6A1060Al99.6


Chemical Composition Table (%)

Al (Min)Si (Max)Fe (Max)Cu (Max)Mn (Max)Mg (Max)Zn (Max)Ti (Max)V (Max)Other (Each)
99.600.250.350.050.030.030.050.030.050.03


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)
O60 - 95≥ 20≥ 20
H1485 - 120≥ 70≥ 5
H18≥ 130≥ 115≥ 2
H2485 - 120≥ 65≥ 6


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.70646 - 6572346169



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
