Aluminum Coil/Strip/Foil

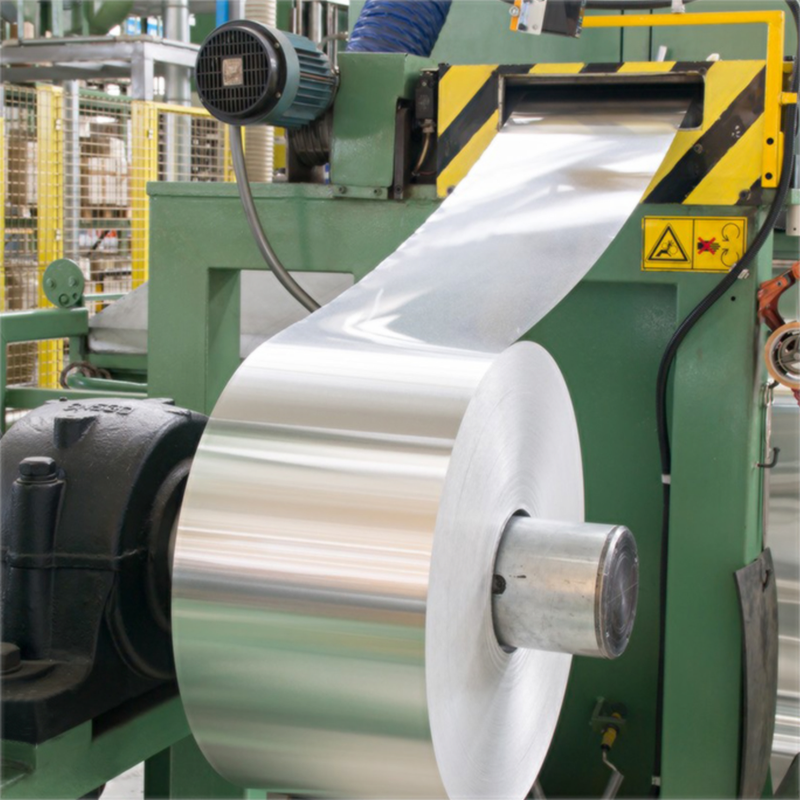

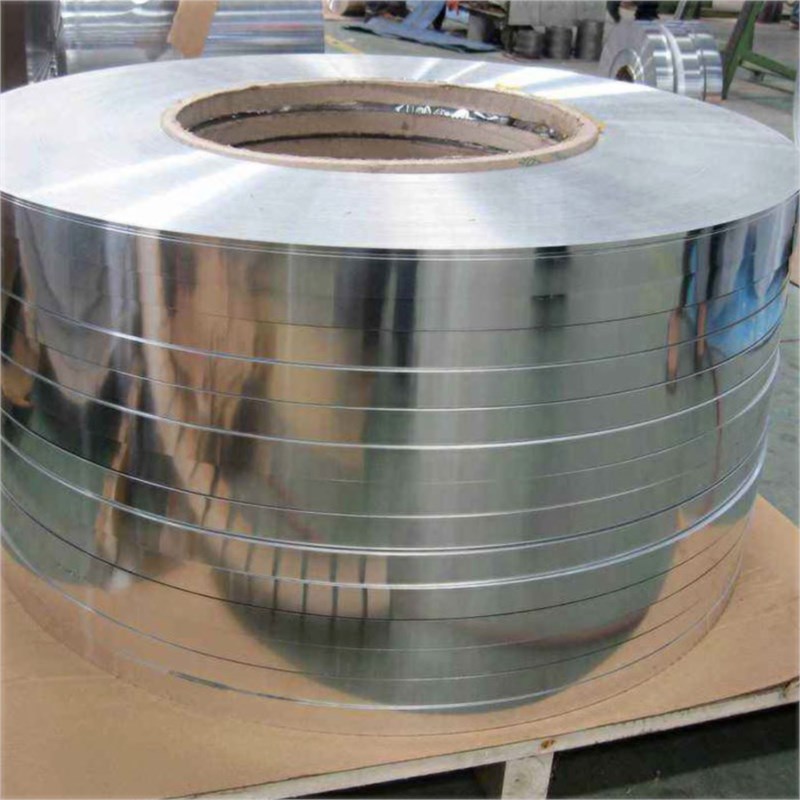

5754 Aluminum Coil/Strip/Foil

‹

›

‹

  • 5754 Aluminum Coil/Strip/Foil
  • 5754 Aluminum Coil/Strip/Foil
  • 5754 Aluminum Coil/Strip/Foil
  • 5754 Aluminum Coil/Strip/Foil

›

5754 Aluminum Coil, Strip, and Foil are magnesium-alloyed products (5000 series) highly valued for their excellent resistance to atmospheric and seawater corrosion. It offers mid-to-high strength and is particularly recognized for its outstanding fatigue strength, making it a reliable choice for components subjected to constant vibration or cyclic loading in thin-gauge formats.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Automotive & TransportMarine & ShipbuildingChemical & Food ProcessIndustrial EngineeringArchitecture & Decor
Railway EngineeringNuclear EnergyOil & GasSignage & InfrastructurePulp & Paper


Specifications Table

FeatureDetails
Product Name5754 Aluminum Coil / Strip / Foil
Thickness

Foil: 0.02 mm - 0.2 mm

Strip/Coil: 0.2 mm - 6.0 mm

Width10 mm - 2600 mm (Precision slitting available)
Coil Inner Diameter (ID)150 mm, 300 mm, 400 mm, 505 mm
TempersO, H111, H22, H24, H32, H34, F
Surface FinishMill finish, Color Coated (PE/PVDF), Embossed, Anodized
ProtectionInterleaved paper, clear PE/PVC protective film (upon request)


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade57545754EN AW-5754 / AlMg3A5754AlMg3


Chemical Composition Table (%)

AlMgMn (Max)Cr (Max)Mn+CrSi (Max)Fe (Max)Zn (Max)Ti (Max)Other (Total)
Remainder2.6 - 3.60.500.300.10 - 0.600.400.400.200.150.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)
O / H111190 - 240≥ 80≥ 14
H22 / H32220 - 270≥ 130≥ 8
H24 / H34240 - 280≥ 160≥ 6


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.67595 - 6451353270



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
