Aluminum Bar/Rod
6063 Aluminum Bar/Rod

‹

›

‹

  • 6063 Aluminum Bar/Rod
  • 6063 Aluminum Bar/Rod
  • 6063 Aluminum Bar/Rod
  • 6063 Aluminum Bar/Rod

›

6063 Aluminum Bar and Rod are heat-treatable magnesium-silicon alloys frequently referred to as "Architectural Aluminum." While it offers lower mechanical strength than 6061, it is the premier choice for bar stock where superior surface finish and intricate cross-sectional details are required.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Architecture & DecorElectronics & ITConsumer GoodsFurniture Mfg.Electrical Power
Automotive TrimMedical HousingSignage & DisplaysSolar EnergyAppliance Trim


Specifications Table

FeatureDetails
Product Name6063 Aluminum Bar / Rod
ShapeRound, Square, Hexagonal, Rectangular (Flat)
Diameter / Size3 mm - 600 mm
Length1000 mm - 12000 mm (Standard: 2500mm, 3000mm, 6000mm)
TempersO, T4, T5, T6, T651, F
Surface FinishMill finish, Polished, Brushed, Anodized, Powder Coated
ProcessingExtruded, Cold Drawn
ToleranceH9, H10, H11 or as per specific requirement


Standard Approximate Comparison Table

Region / StandardGB (China)ASTM (USA)EN (Europe)JIS (Japan)ISO (International)
Equivalent Grade60636063EN AW-6063 / AlMg0.7SiA6063AlMg0.7Si


Chemical Composition Table (%)

AlMgSiFe (Max)Cu (Max)Mn (Max)Cr (Max)Zn (Max)Ti (Max)Other (Total)
Remainder0.45 - 0.90.20 - 0.600.350.100.100.100.100.100.15


Mechanical Properties Table

TemperTensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)Hardness (HB)
O≤ 130≤ 65≥ 1825
T5≥ 160≥ 110≥ 860
T6≥ 205≥ 170≥ 873


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Electrical Conductivity (%IACS)Modulus of Elasticity (GPa)
2.69615 - 6552005368.9



Quick Links

Packaging Shipping

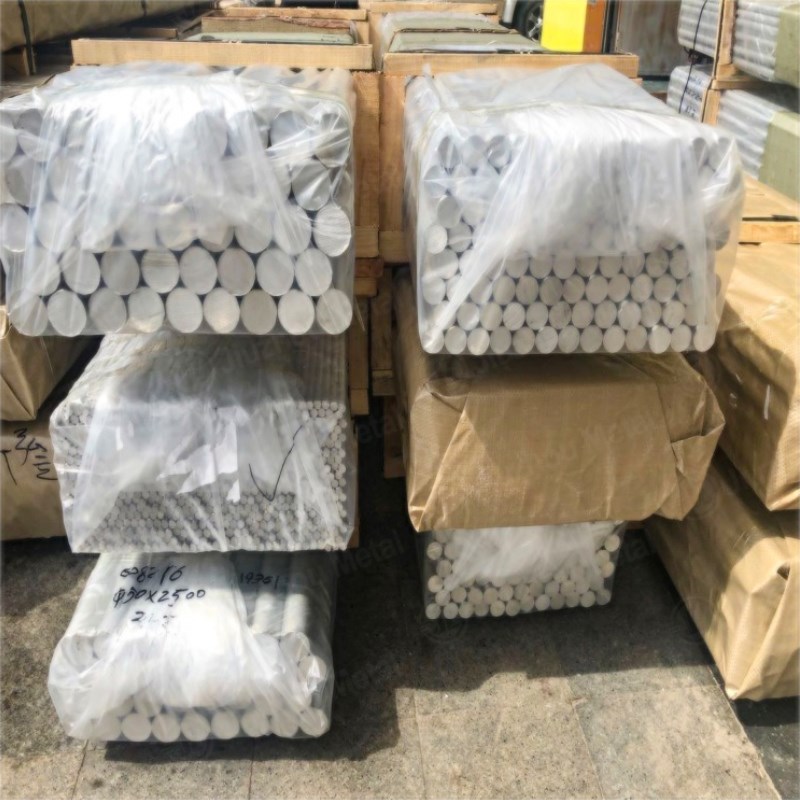

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.

Description
