Aluminum Pipe/Tube

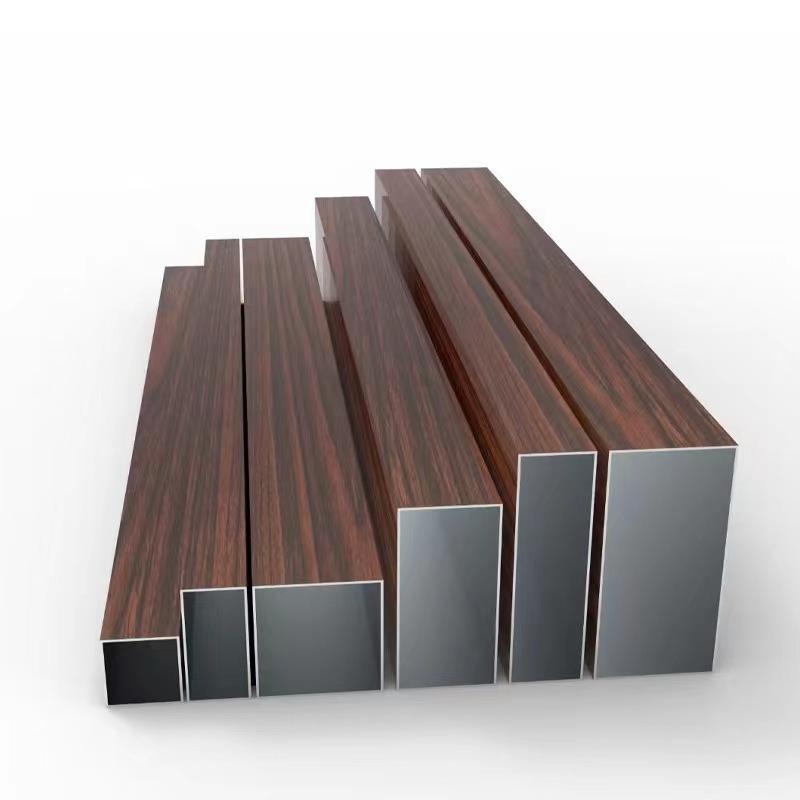

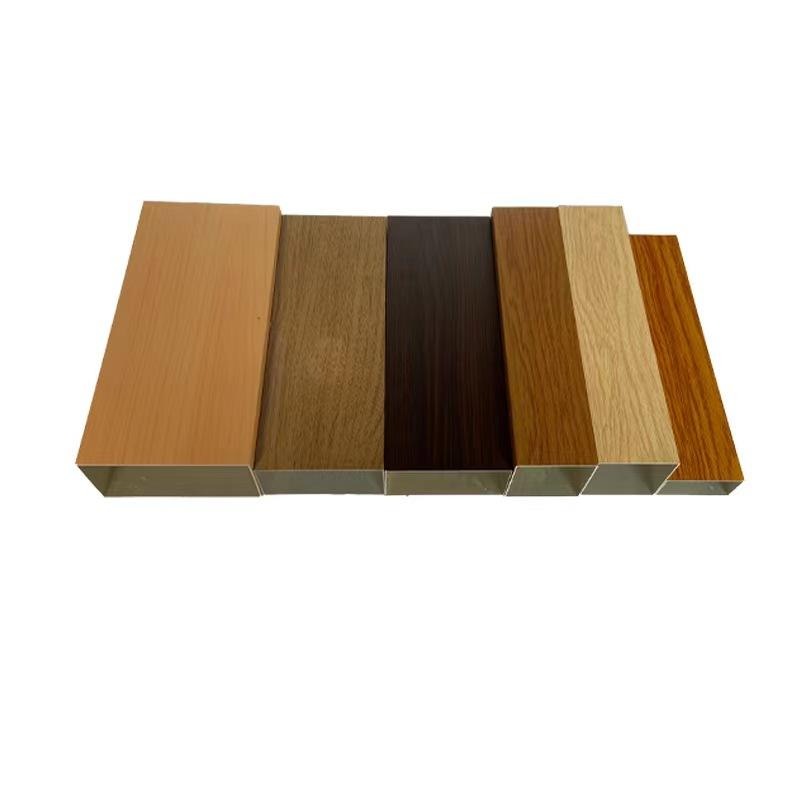

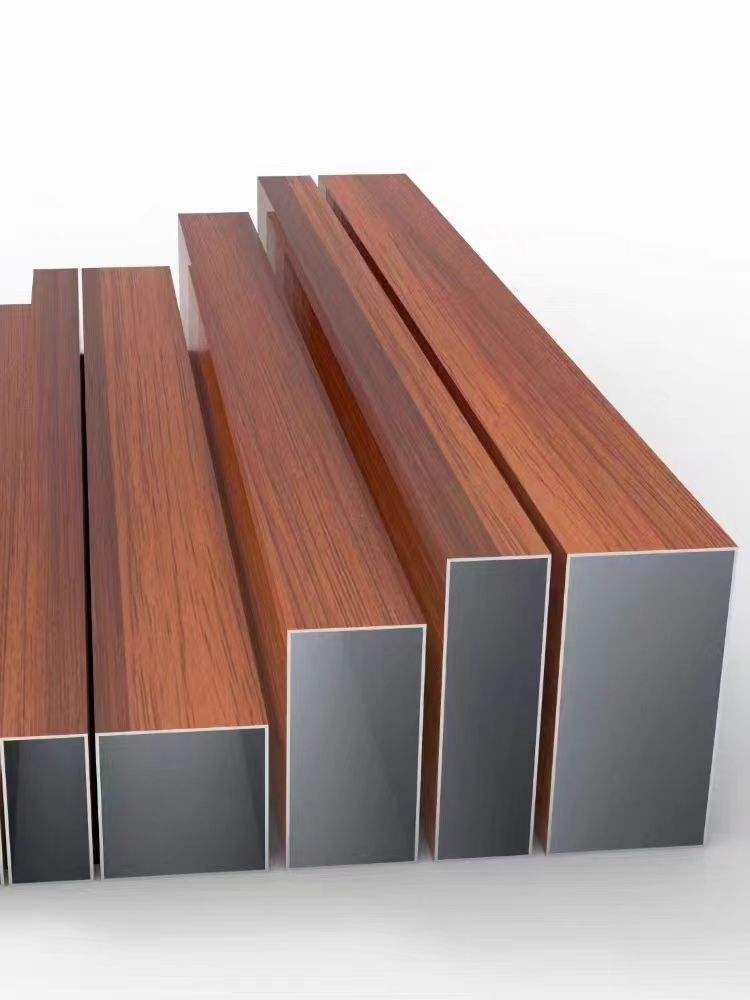

Wood Grain Aluminum Tube/Pipe

‹

›

‹

  • Wood Grain Aluminum Tube/Pipe
  • Wood Grain Aluminum Tube/Pipe
  • Wood Grain Aluminum Tube/Pipe
  • Wood Grain Aluminum Tube/Pipe

›

Wood Grain Aluminum Tube/Pipe features a durable decorative finish that mimics natural timber using powder coating or heat transfer techniques. It combines the aesthetic warmth of wood with aluminum's benefits, such as lightweight strength, fire resistance, and immunity to rot. Widely used in architectural louvers, railings, and furniture, it provides a sophisticated look without the maintenance or weathering issues of real wood.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Handrails & BalustradesWindow & Door ProfilesInterior Wall FramingCeiling Grid SystemsSignage Frames
Elevator InteriorsRetail ShopfittingOffice PartitionsFurniture FramesMarine/Ship Interiors


Product Parameters

ParameterSpecification Details
Base MaterialAluminum Alloy (AA Series)
Alloy Grades1xxx Series: 1050, 1060, 1100 (Pure Al, Economic, For Indoor Decoration)3xxx Series: 3003, 3004, 3105 (Al-Mn, Anti-rust, Standard for Construction - Most Popular)5xxx Series: 5005, 5052, 5083 (Al-Mg, High Strength, Marine Grade, High Corrosion Resistance)6xxx Series: 6061, 6063 (Al-Mg-Si, High Strength, Structural Load-Bearing)
TemperH14, H24 (Half Hard), H16, H18, O (Soft), T5, T6 (For 6xxx Series)
Surface TechnologyVacuum Heat Transfer Printing (Sublimation) / Roller Coating
Pattern TypesWood Grain: Oak, Walnut, Teak, Cherry, Maple, etc.Customized Wood Grain Patterns Available
Dimension RangeRound Tube: Outer Diameter 10mm - 300mmSquare/Rectangular Tube: 10x10mm - 200x200mm, Custom Sizes AvailableWall Thickness: 0.5mm - 8.0mmStandard Length: 6m (20ft), Custom Cut Length Available
Coating TypePVDF (Fluorocarbon, Outdoor - UV Resistant)Powder Coating (Electrostatic Spray, Heavy Duty)Polyester/PE (Indoor Use)
Coating ThicknessPVDF: 25 - 35 microns (μm)Powder: 60 - 120 microns (μm)PE: 16 - 25 microns (μm)
Fire RatingClass A1 / A2 (Non-combustible) - Major selling point over real wood
Surface TextureSmooth, Matte, Glossy, or 3D Textured (Real-touch feeling)
Protective Film50 - 80 microns PE Film (Black/White or Transparent) with Brand Logo
WarrantyOutdoor: 10-15 Years (No fading)Indoor: 5-8 Years
StandardsASTM B221, EN 755, GB/T 5237, YS/T 730, AAMA 2603 / 2604 / 2605 (for PVDF)


Coating Performance Comparison

FeaturePVDF Coating (Roll Coated)Powder Coating (Sprayed)PE Coating (Polyester)
Main ApplicationHigh-end Outdoor (Handrails, Facades, Landscape Structures)Heavy Duty (Structural Frames, Outdoor Screens)Indoor (Ceiling Grids, Furniture Frames, Interior Trims)
Weather ResistanceExcellent (No fading for decades)Very GoodFair (Fades in sunlight)
Warranty15 - 20 Years10 - 15 Years5 - 8 Years
Film ThicknessThin & Smooth (25-30μm)Thick & Hard (60-100μm)Thin (16-20μm)
Abrasion ResistanceGoodExcellent (Harder surface)Moderate
StandardAAMA 2605AAMA 2604 / 2605AAMA 2603


Physical & Mechanical Properties

PropertyValue (AA3003 H24)Value (AA6063 T5)Notes
Tensile Strength145 - 195 MPa150 - 200 MPaStrength of the base metal
Yield Strength≥ 115 MPa≥ 110 MPaPoint of permanent deformation
Elongation≥ 10%≥ 8%Formability (bending without cracking)
Pencil Hardness≥ 2H (PVDF)≥ 3H (Powder)Scratch resistance
Gloss Level10% - 90% (Customizable)10% - 90% (Customizable)Matte, Satin, or High Gloss
MEK Resistance≥ 100 Double Rubs≥ 100 Double RubsSolvent resistance test
T-Bend Test≤ 2T≤ 3TFlexibility of the paint (won't peel when bent)


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
