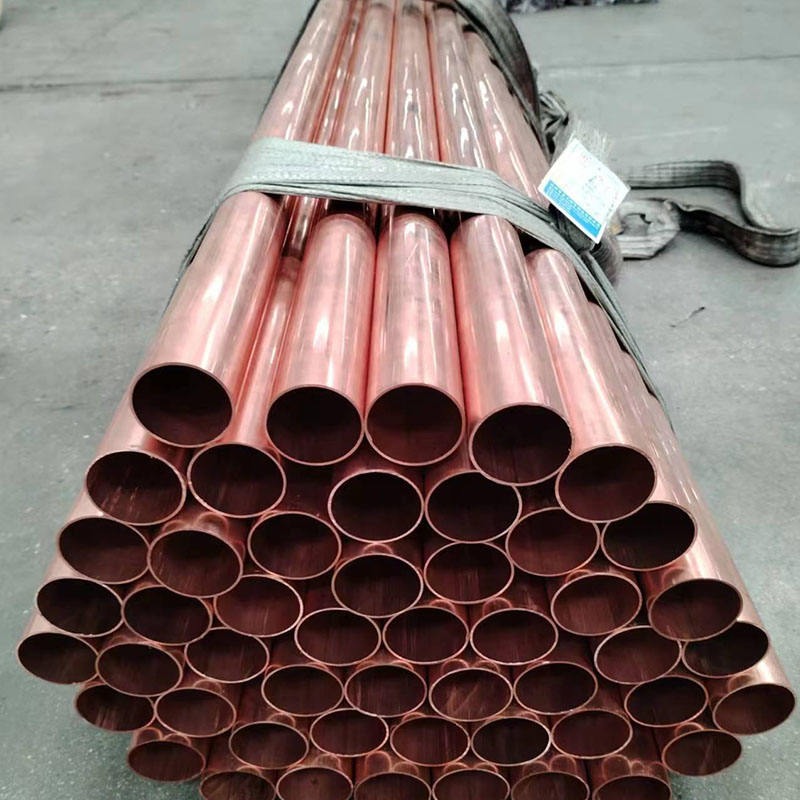

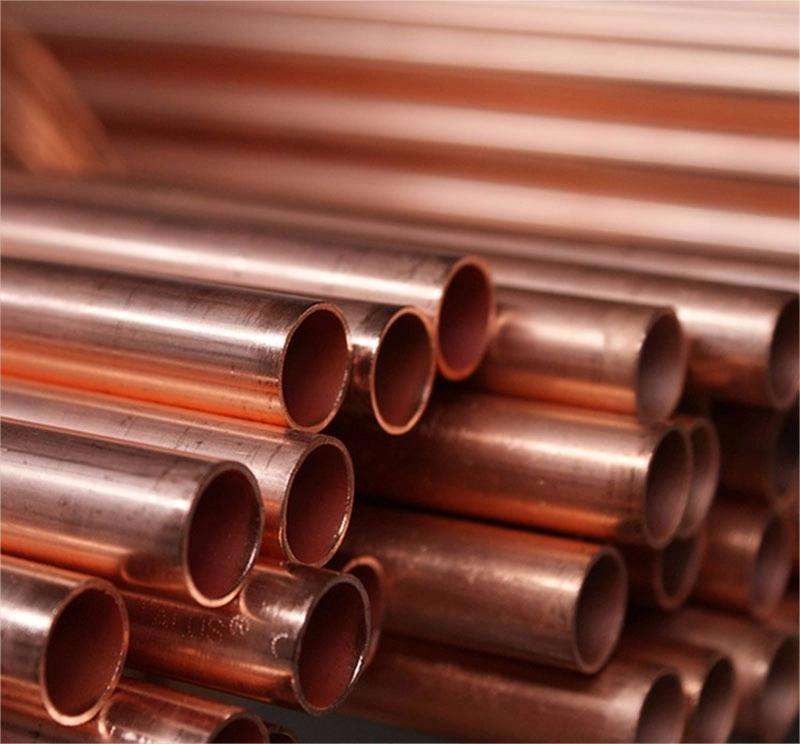

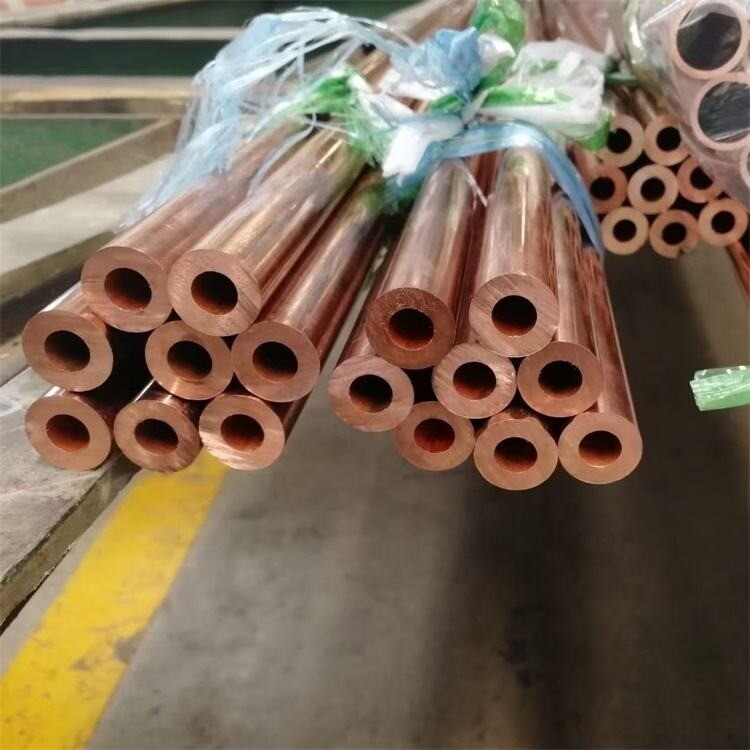

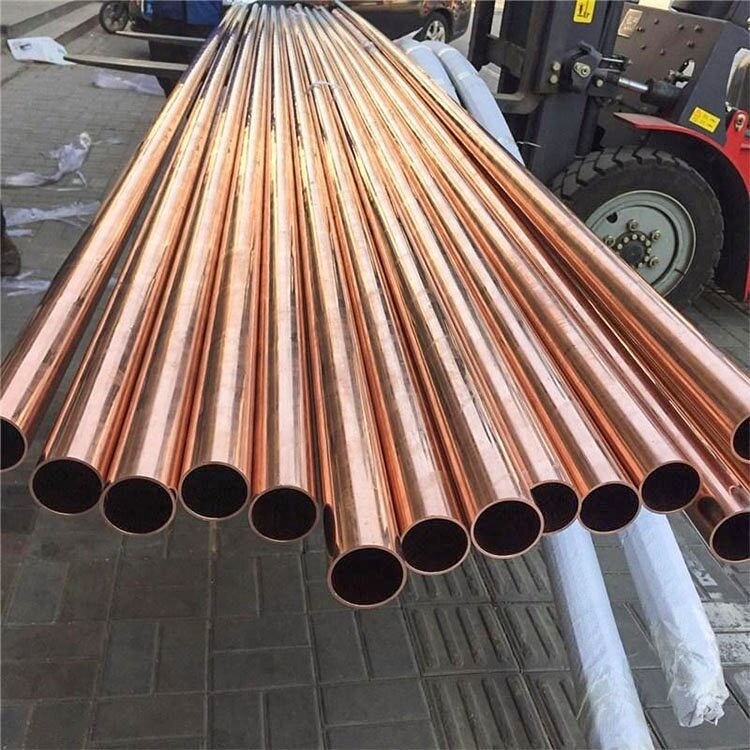

C12000 Copper Pipe/Tube

C12000 copper pipe, also known as Deoxidized Low Phosphorus (DLP) copper, is known for its high conductivity, good corrosion resistance, and excellent formability. With a minimum copper content of 99.90% and a small amount of phosphorus, C12000 is deoxidized, making it less susceptible to embrittlement when heated. This quality makes it suitable for welding and brazing. It's commonly used in applications requiring good conductivity and fabrication properties, such as electrical conductors, architectural applications, heat exchangers, and plumbing. The phosphorus content provides added corrosion resistance, especially against dezincification in specific environments, enhancing its suitability for various industrial and construction applications.

Description

Applications

HVAC & CoolingElectronicsPower DistributionRenewable EnergyAutomotive
Medical SystemsIndustrial Mach.AerospaceTelecommunicationsPlumbing

Specifications Table

Product NameC12000 DLP Copper Pipe / Tube
StandardASTM B75, ASTM B68, EN 12449, JIS C1201
Outside Diameter (OD)3 mm - 200 mm
Wall Thickness (WT)0.4 mm - 15 mm
Length2m - 6m (Straight), or Pancake Coils
Temper (Hardness)Soft Annealed (O60), Light Drawn (H55), Hard Drawn (H80)
Surface FinishBright Annealed, Cleaned, Polished

Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC12000CW005A / Cu-DLPC1201TP1


Chemical Composition Table (%)

ElementCopper (Cu)Phosphorus (P)Others (Total)
Range≥99.900.004 - 0.012≤0.10


Mechanical Properties Table (Typical for H55 Light Drawn)

PropertyPerformance Data
Tensile Strength (Rm)250 - 320 MPa
Yield Strength (Rp0.2)200 - 290 MPa
Elongation (A50mm)≥12%
Hardness (Rockwell F)60 - 85 HRF


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
