Copper rod
Copper Bus Bar

‹

›

‹

  • Copper Bus Bar
  • Copper Bus Bar
  • Copper Bus Bar

›

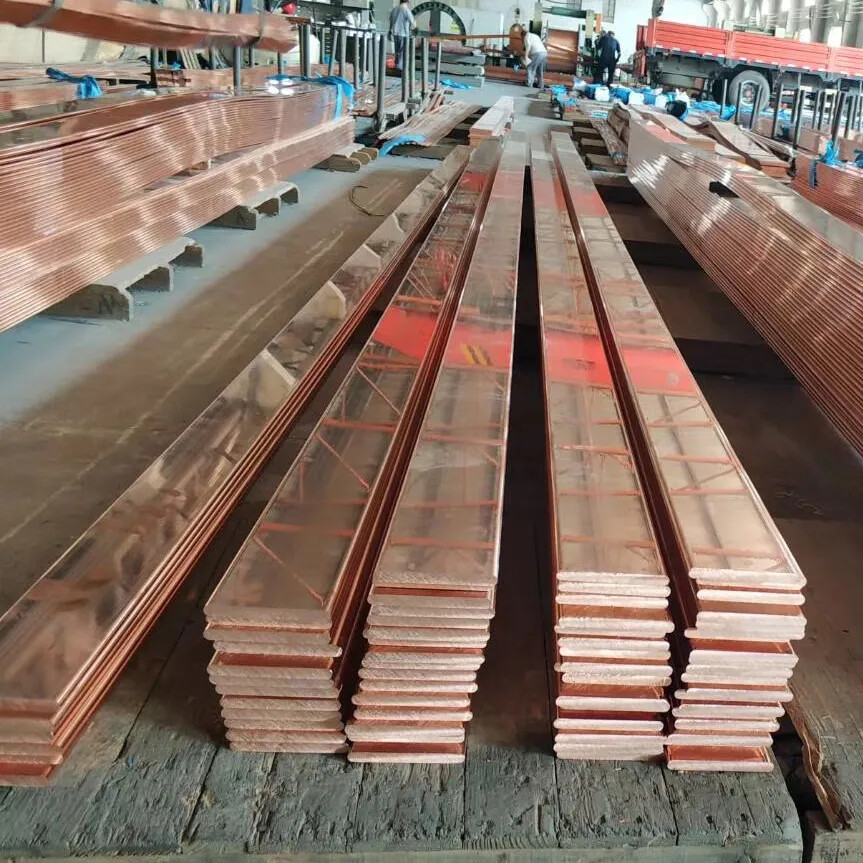

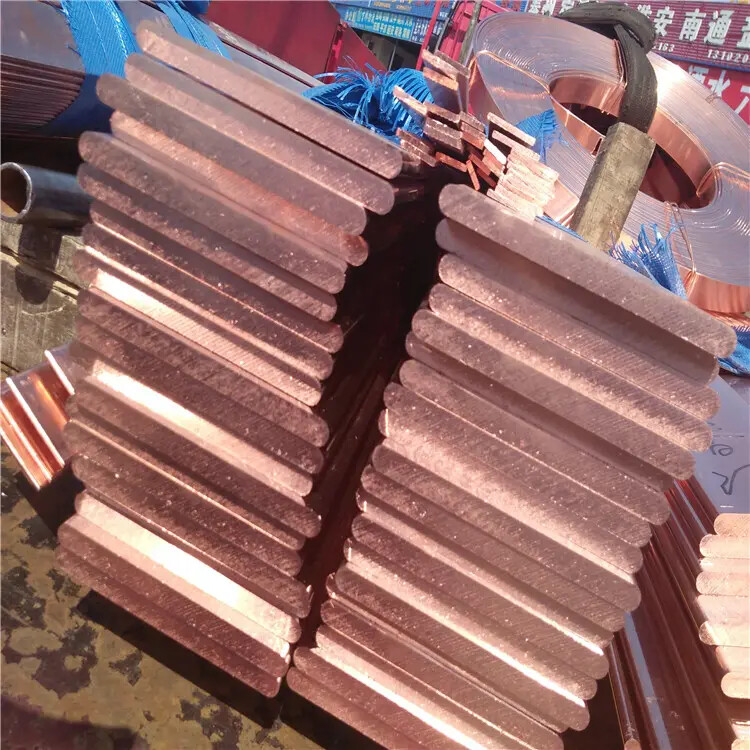

A copper bus bar is a solid metal strip or bar used for high-current power distribution. Unlike standard wiring, bus bars are designed to carry massive electrical loads with minimal energy loss, acting as a central "hub" that collects power from an incoming source and distributes it to multiple outgoing circuits.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

TypeDescriptionPrimary Use Case
Flat BarSolid rectangular strip.Switchgear, panelboards, and transformers.
Tubular (Hollow)Round or square hollow tubes.High-voltage substations (allows for air cooling).
FlexibleLayered thin copper foils or braided wire.Connecting vibrating machinery or battery packs.
LaminatedLayers of copper separated by thin insulation.Electric vehicle (EV) inverters and power electronics.


Specifications Table

FeatureDetails
Product NameCopper Bus Bar / Flat Copper Bar
Common GradesC11000 (ETP), C10200 (OF), C10100 (OFE)
StandardASTM B187, EN 13601, JIS C1100
Thickness Range2 mm - 50 mm
Width Range10 mm - 250 mm
Length2m - 6m, or custom-cut lengths
EdgesSquare, Full Radius (Round), or Chamfered
Surface FinishPlain (Bright), Tin-Plated, Silver-Plated, or Nickel-Plated


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC11000CW004A / Cu-ETPC1100T2
High Purity GradeC10200CW008A / Cu-OFC1020TU2


Mechanical & Electrical Properties (C11000)

PropertyPerformance Data
Electrical Conductivity≥100% IACS (typically 101%)
Tensile Strength (Rm)245 - 300 MPa (Half-Hard)
Yield Strength (Rp0.2)≥170 MPa
Hardness65 - 90 HV
Thermal Conductivity388 W/(m·K)


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
