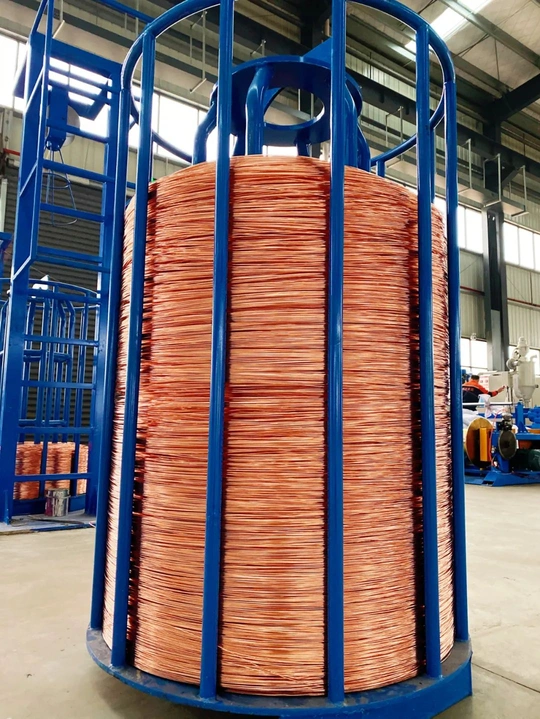

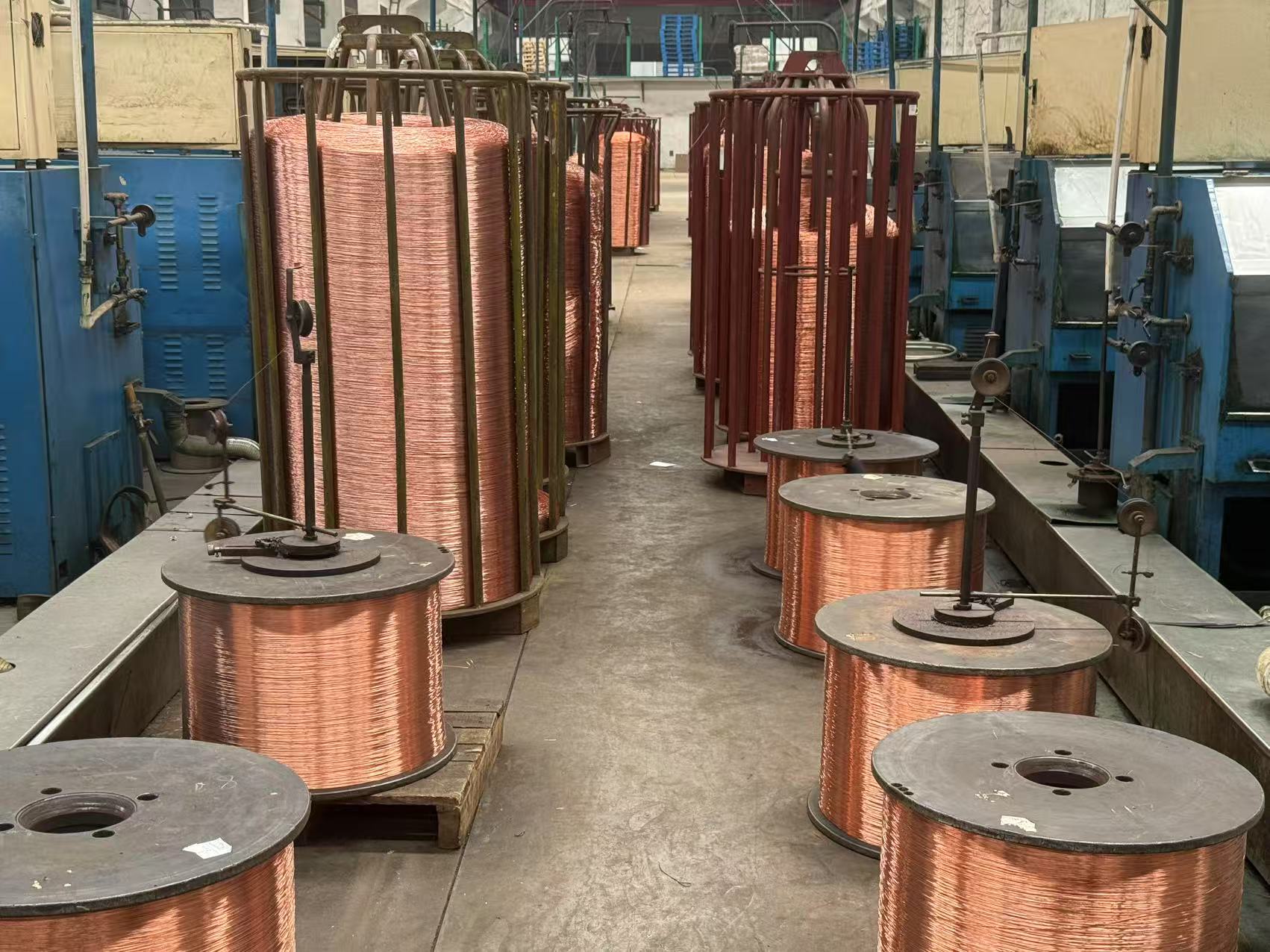

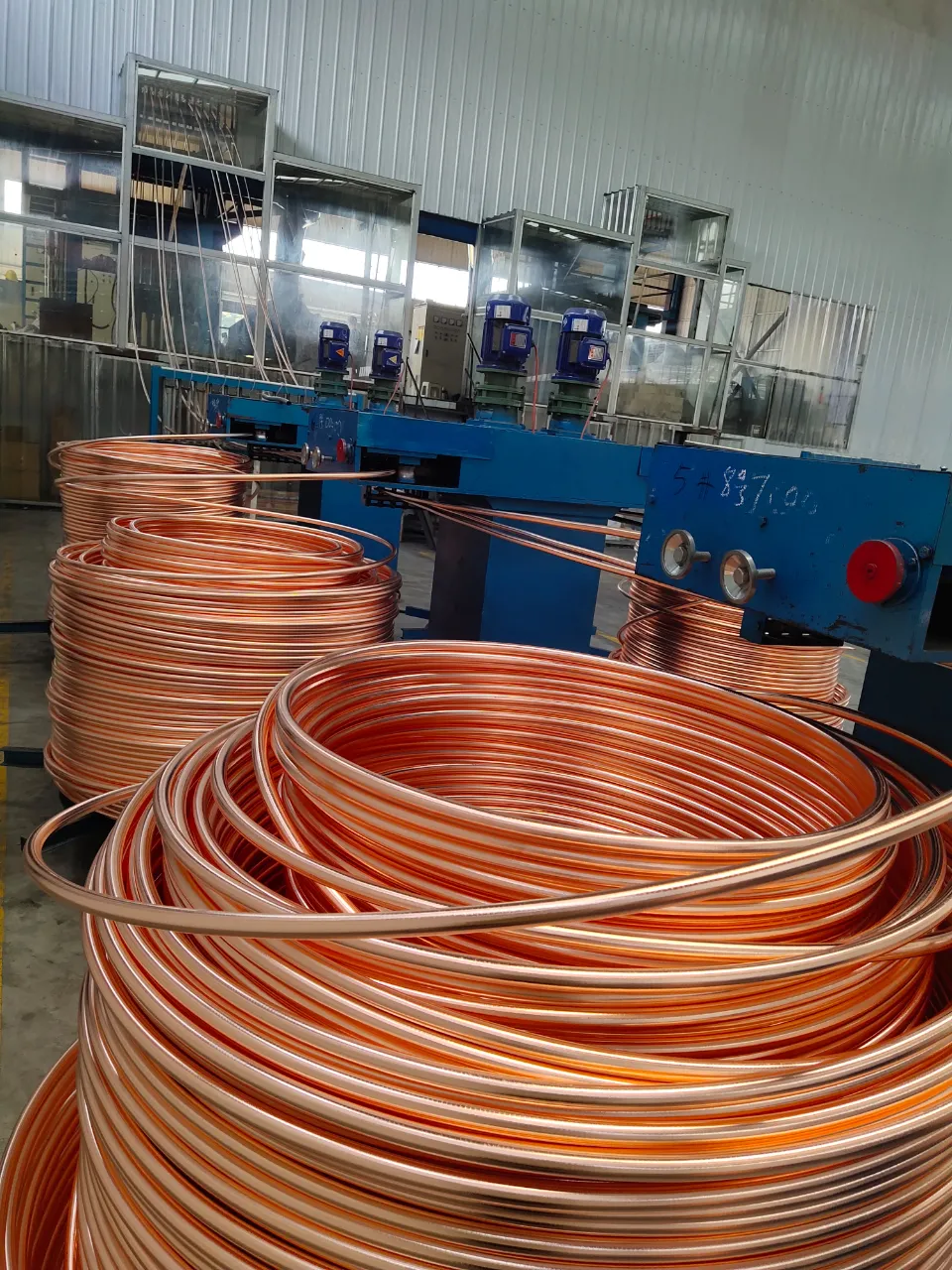

Copper rod

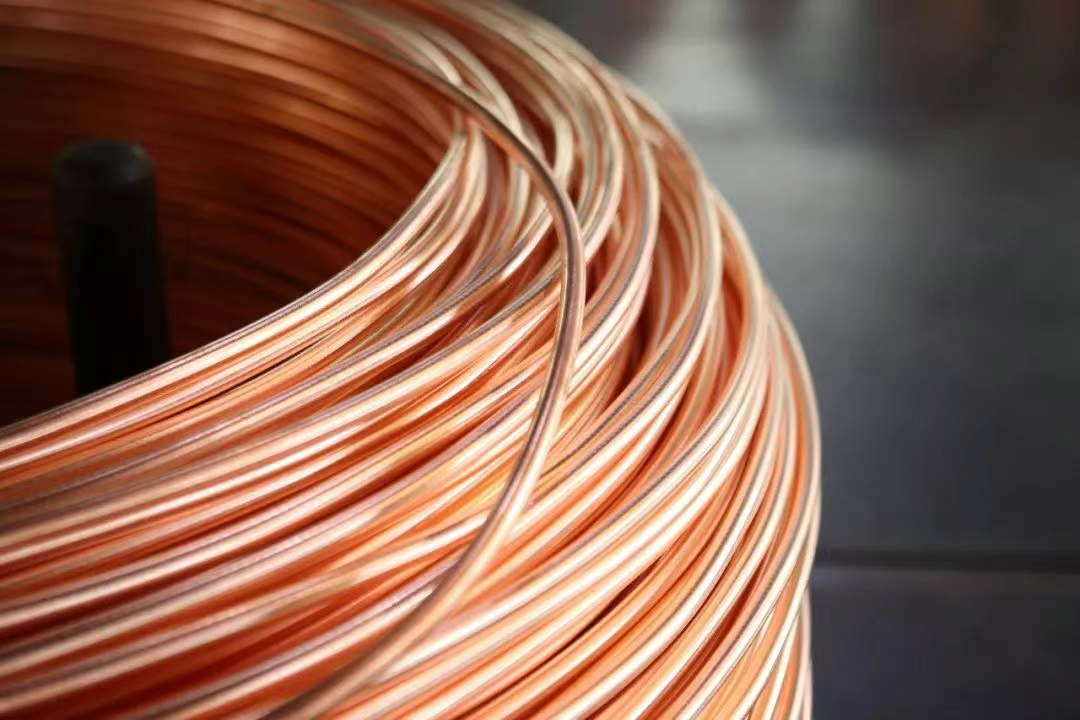

Oxygen-free copper rod

‹

›

‹

  • Oxygen-free copper rod
  • Oxygen-free copper rod
  • Oxygen-free copper rod
  • Oxygen-free copper rod
  • Oxygen-free copper rod

›

Oxygen-free copper rod is a high-purity copper rod with extremely low oxygen content, typically less than 10 parts per million (ppm). This high purity results in superior electrical and thermal conductivity compared to standard copper. Oxygen-free copper is used in applications where these properties are critical, such as in electrical and electronic components, superconducting wires, and scientific instruments.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

SemiconductorsVacuum ElectronicsCryogenicsNuclear ResearchHigh-End Audio
AerospaceMedical ImagingElectric VehiclesTelecommunicationsPower Grid


Specifications Table

Product NameOxygen-Free Copper Rod / Bar
Main GradesC10200 (OF - 99.95%), C10100 (OFE - 99.99%)
StandardASTM B187, ASTM B170, EN 13601, JIS C1020
Diameter Range3 mm - 250 mm
Length2m - 6m, or precision-cut slugs
Toleranceh8, h9, h11 (Cold Drawn)
TemperSoft/Annealed (O60), Half-Hard (H02), Hard (H04)
Surface FinishBright, Mirror Polished, Pickled

Comparison of Oxygen-Free Grades

GradePurity (Cu)FeaturesBest Use Case
C10200 (OF)≥99.95%Oxygen < 10 ppm; Hydrogen safe.High-quality electrical & vacuum parts.

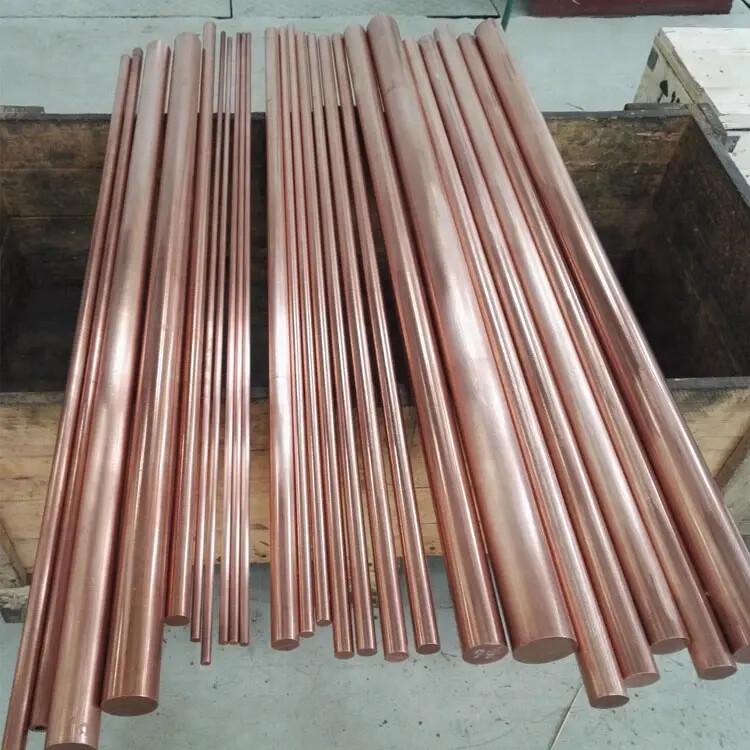

C10100 (OFE)≥99.99%Oxygen < 5 ppm; Ultra-low impurities.Semiconductors & Particle accelerators.


Chemical Composition Table (%)

GradeCopper (Cu)Oxygen (O)Phosphorus (P)Lead (Pb)
C10200≥99.95≤0.001≤0.0003≤ 0.001
C10100≥99.99≤0.0005≤ 0.0003≤0.001


Mechanical & Physical Properties

PropertyPerformance Data
Electrical Conductivity≥101% IACS
Thermal Conductivity391 W/(m·K)
Tensile Strength ($R_m$)260 - 340 MPa (Half-Hard)
Density8.94 g/cm³
Vapor PressureExtremely low (Ideal for vacuums)


Quick Links

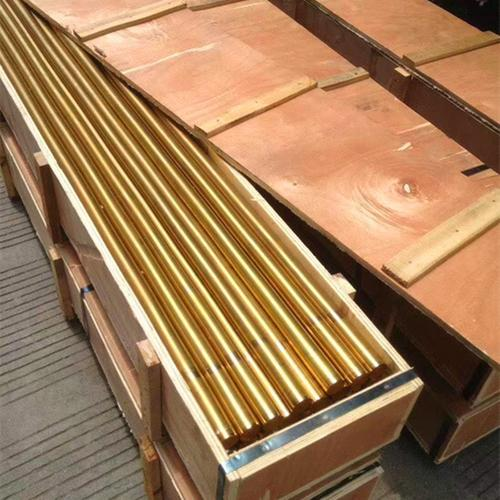

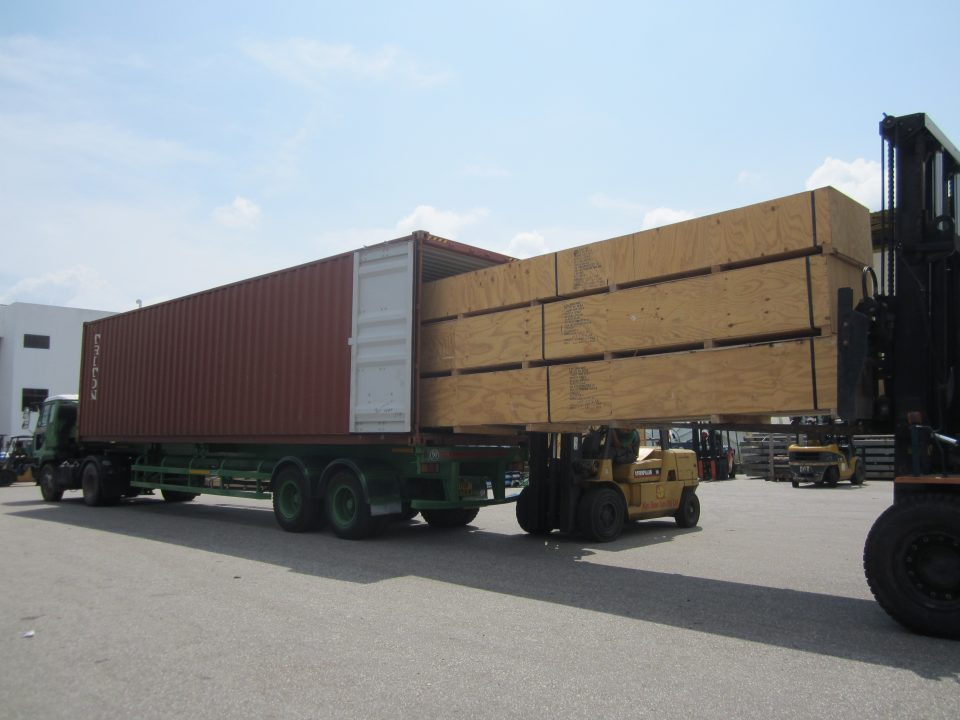

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
