Copper Plate/Sheet

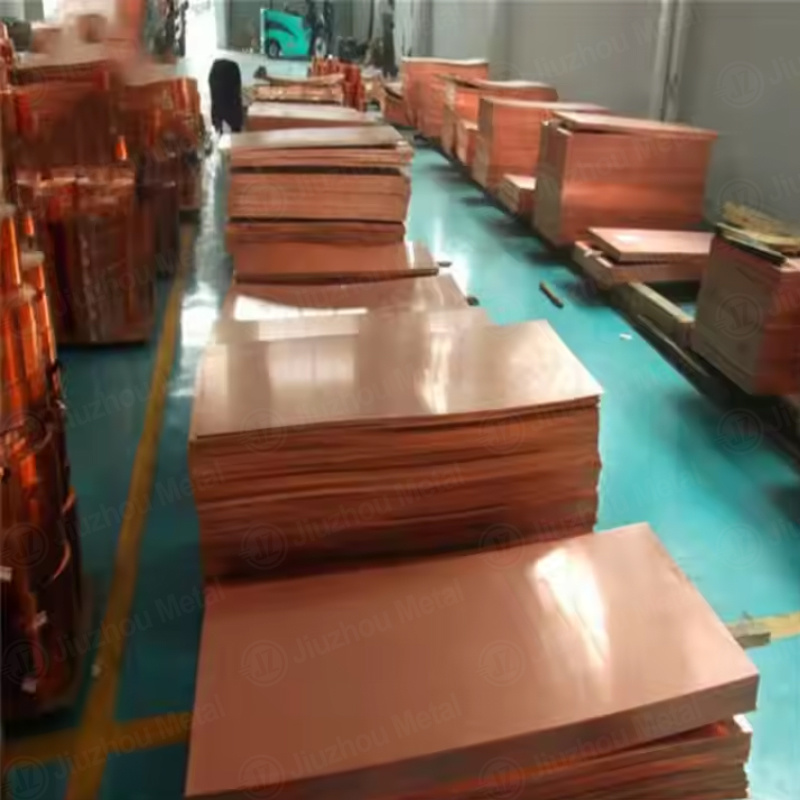

C10200 Copper Plate/Sheet

‹

›

‹

  • C10200 Copper Plate/Sheet
  • C10200 Copper Plate/Sheet
  • C10200 Copper Plate/Sheet
  • C10200 Copper Plate/Sheet
  • C10200 Copper Plate/Sheet

›

C10200 copper, known as Oxygen-Free (OF) Copper, is a high-purity wrought alloy that contains at least 99.95% copper. Unlike standard copper grades, it is produced by melting and casting in a non-oxidizing atmosphere, resulting in a metal that is virtually free of cuprous oxides. This makes it the "gold standard" for high-end electronics and applications requiring extreme conductivity and vacuum integrity.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

SemiconductorsVacuum ElectronicsRenewable EnergyAudio EngineeringNuclear Research
AerospaceTelecommunicationsMedical ImagingCryogenicsPower Distribution

Specifications Table

Product NameC10200 Oxygen-Free Copper Plate / Sheet
StandardASTM B152, ASTM B187 (Bus Bar), EN 1652
Thickness (Sheet)0.3 mm - 3.0 mm
Thickness (Plate)4.0 mm - 100 mm
Width Range600 mm - 1500 mm
Length2000 mm, 2440 mm, 3000 mm, or Coil
Temper (Hardness)Soft (O60), Half-Hard (H02), Hard (H04)
Surface FinishMill Finish, Polished, Mirror Finish


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC10200CW008A / Cu-OFC1020TU2


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Phosphorus (P)Tellurium (Te)Lead (Pb)
Range≥99.95≤0.001≤0.0003≤0.001≤0.001


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)260 - 330 MPa
Yield Strength (Rp0.2)200 - 280 MPa
Elongation (A50mm)≥10%
Hardness (Rockwell F)75 - 90 HRF



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
