Copper Plate/Sheet

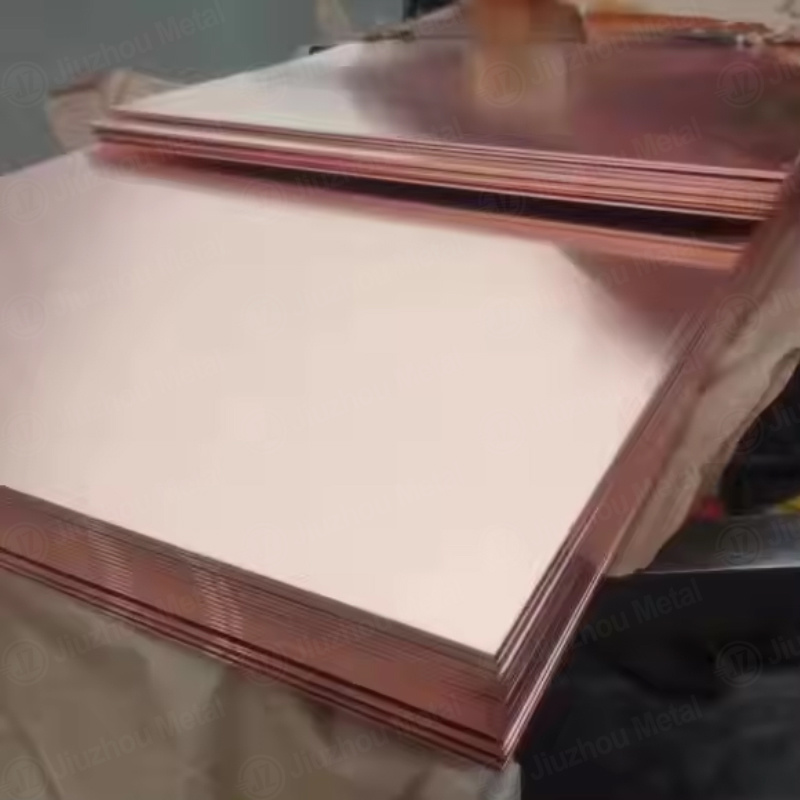

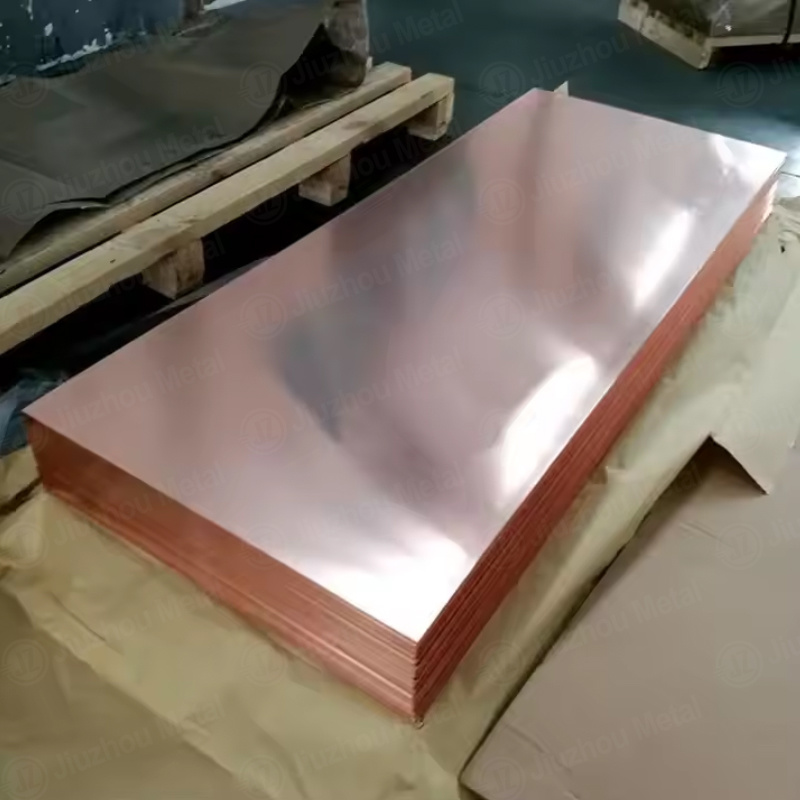

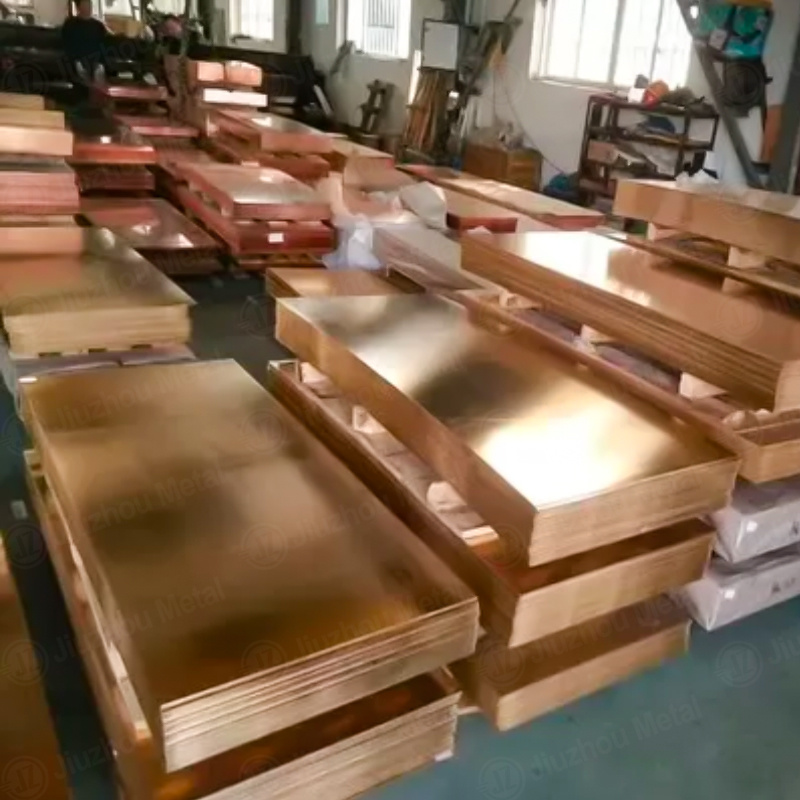

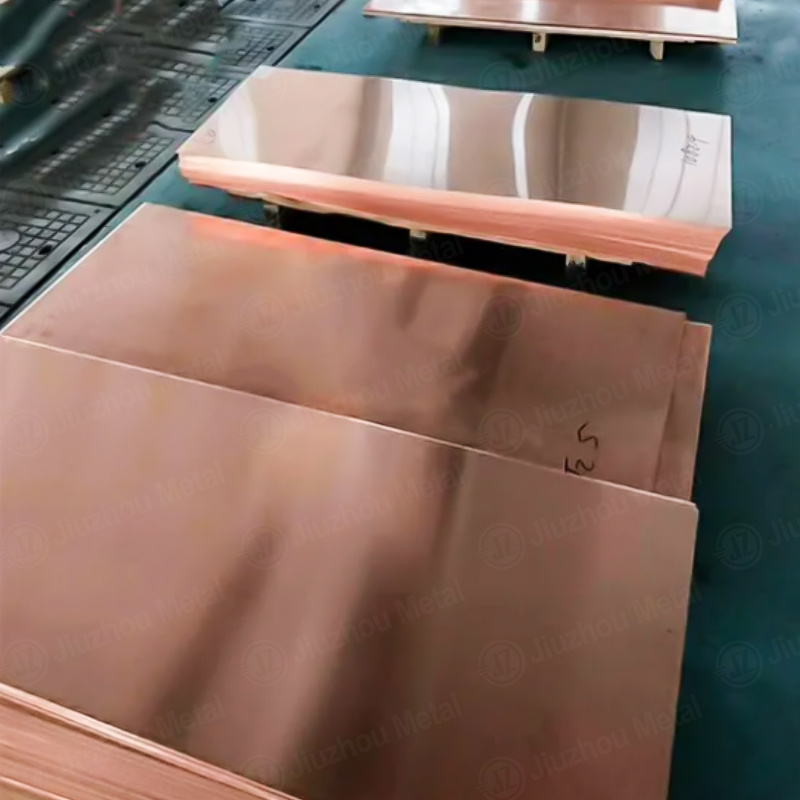

C11000 Copper Plate/Sheet

‹

›

‹

  • C11000 Copper Plate/Sheet
  • C11000 Copper Plate/Sheet
  • C11000 Copper Plate/Sheet
  • C11000 Copper Plate/Sheet
  • C11000 Copper Plate/Sheet

›

C11000 copper, commonly known as Electrolytic Tough Pitch (ETP) Copper, is the industry standard for electrical applications. It is the most widely used copper grade globally due to its exceptional electrical conductivity (minimum 100% IACS) and high purity (99.90% Cu).

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

Power DistributionTelecommunicationsConstructionAutomotiveIndustrial Mach.
Renewable EnergyElectronicsAppliance Mfg.PlumbingArt & Decor

Specifications Table

FeatureDetails
Product NameC11000 ETP Copper Plate / Sheet
StandardASTM B152, ASTM B187, EN 1652, JIS C1100
Thickness (Sheet)0.3 mm - 3.0 mm
Thickness (Plate)4.0 mm - 120 mm
Width Range600 mm - 1250 mm (Standard), up to 2500 mm (Custom)
Length2000 mm, 2440 mm, 3000 mm, or Coil
Temper (Hardness)Soft (O60), Quarter-Hard (H01), Half-Hard (H02), Hard (H04)
Surface FinishMill Finish, Polished, Brushed, Plastic Film Coated (PVC)


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeC11000CW004A / Cu-ETPC1100T2


Chemical Composition Table (%)

ElementCopper (Cu)Oxygen (O)Lead (Pb)Others (Total)
Range≥99.900.02 - 0.04≤ 0.005≤0.10


Mechanical Properties Table (Typical for H02 Half-Hard)

PropertyPerformance Data
Tensile Strength (Rm)245 - 325 MPa
Yield Strength (Rp0.2)170 - 280 MPa
Elongation (A50mm)≥12%
Hardness (Rockwell F)60 - 85 HRF



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
