Stainless Steel Pipe/Tube

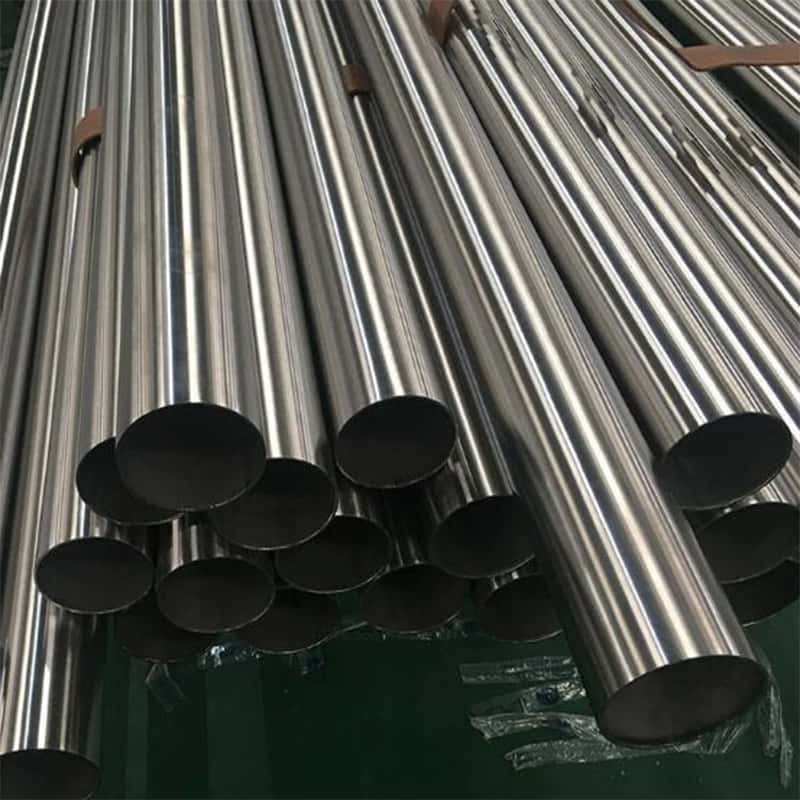

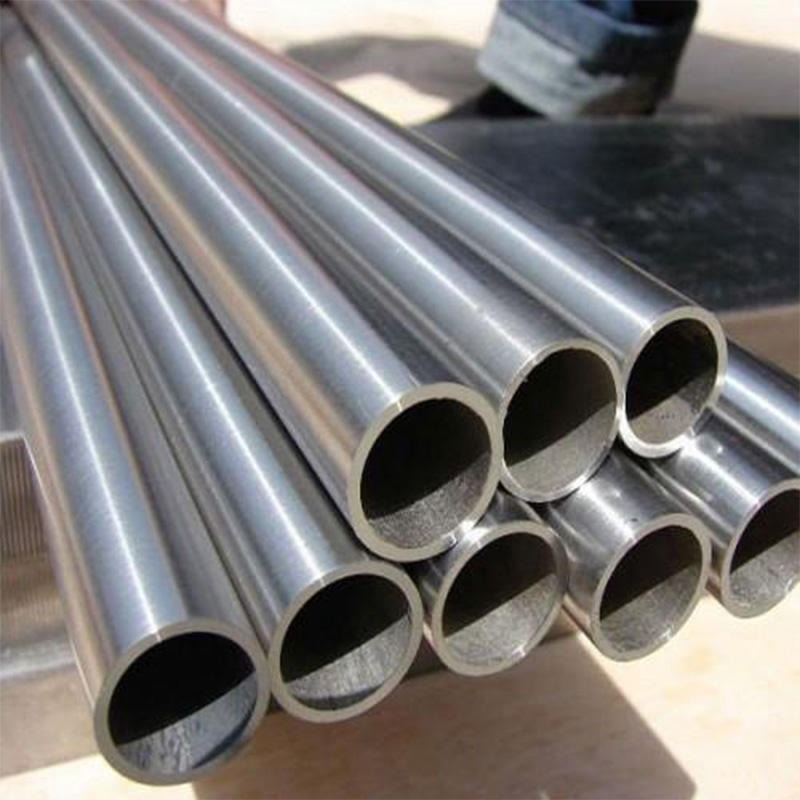

316L stainless steel pipe

‹

›

‹

  • 316L stainless steel pipe
  • 316L stainless steel pipe
  • 316L stainless steel pipe
  • 316L stainless steel pipe

›

316L stainless steel pipe is the extra-low carbon version of the standard 316 alloy. The "L" stands for "Low Carbon," specifically limiting carbon content to a maximum of 0.03%. This minor adjustment makes it the industry standard for welded piping systems in highly corrosive environments, as it eliminates the risk of intergranular corrosion caused by welding heat.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

PharmaceuticalChemical & PetroMarine & NavalSemiconductorFood & Dairy
Medical DevicesOil & GasWater DesalinationNuclear PowerBiotechnology

Specifications Table

FeatureDetails
Product Name316L Stainless Steel Pipe / Tube
StandardASTM A312 (Industrial), ASTM A213 (Boiler/Heat Exchanger), ASTM A269
Pipe TypeSeamless (SMLS), Welded (ERW, EFW)
Size Range1/8" to 36" (NB/DN)
Schedule (Thickness)SCH 5S, 10S, 40S, 80S, 160, XXS
Length6m (Standard), or cut-to-length up to 12m
End FinishPlain End, Beveled End, Threaded, Flanged
Surface FinishAnnealed & Pickled (AP), BA (Mirror), 320/400/600 Grit Polished


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeS316031.4404 / 1.4435SUS316L022Cr17Ni12Mo2


Chemical Composition Table (%)

GradeC (Max)Mn (Max)Si (Max)P (Max)S (Max)CrNiMoN (Max)
316L0.032.000.750.0450.03016.0 - 18.010.0 - 14.02.0 - 3.00.10


Mechanical Properties Table (Annealed State)

Tensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)Hardness (Brinell)Hardness (Rockwell B)
≥ 485≥ 170≥ 40≤ 217 HBW≤ 95 HRB


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Specific Heat (J/kg·K)Modulus of Elasticity (GPa)
8.001375 - 140016.3500193



Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
