Stainless Steel Pipe/Tube

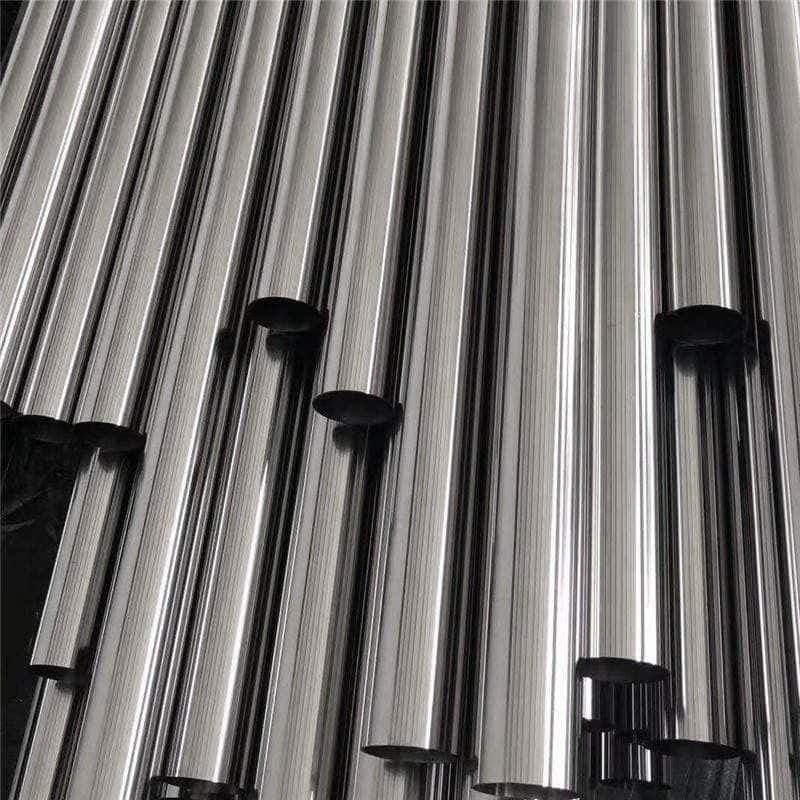

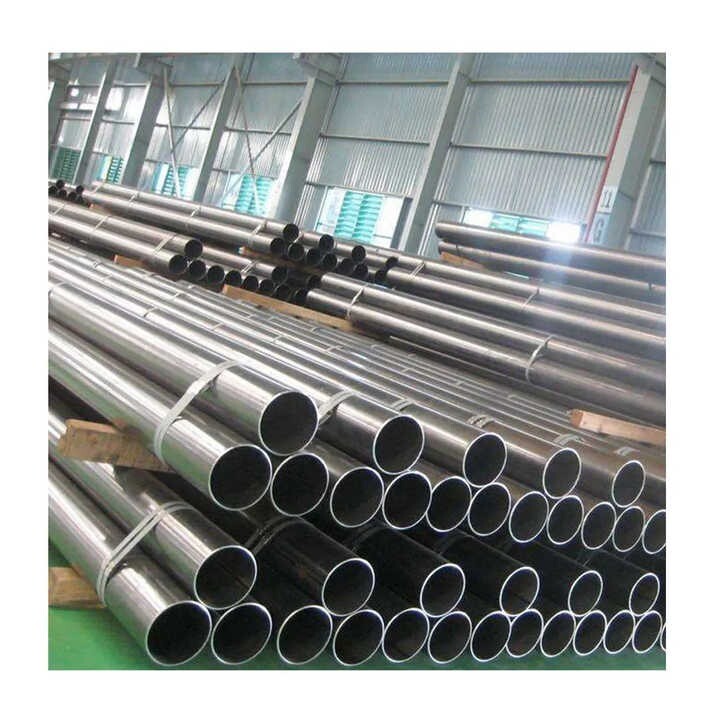

430 Stainless steel pipe

‹

›

‹

  • 430 Stainless steel pipe
  • 430 Stainless steel pipe
  • 430 Stainless steel pipe
  • 430 Stainless steel pipe

›

430 stainless steel pipe is a ferritic, non-hardenable alloy containing straight chromium (16–18%). It belongs to the 400-series and is widely recognized as the most popular ferritic stainless steel. It is primarily selected for its excellent atmospheric corrosion resistance and thermal properties at a significantly lower cost than nickel-bearing alloys like 304 or 316.

Email：sales1@tisco-ssplate.com

Send Now

Description

Applications

AutomotiveHome AppliancesArchitecture (Indoor)Power GenerationCatering
KitchenwareHVACIndustrial BurnersDecorative HardwareFurniture Mfg.


Specifications Table

FeatureDetails
Product Name430 Stainless Steel Pipe / Tube
StandardASTM A268 (Seamless and Welded Ferritic)
Pipe TypeSeamless (SMLS), Welded (ERW)
Size Range1/2" to 20" (NB/DN)
Schedule (Thickness)SCH 10S, 40S, 80S
Length6m (Standard), or customized lengths
End FinishPlain End, Beveled End, Threaded
Surface FinishAnnealed & Pickled, Polished (Grit 180, 240, 320, 400), BA


Standard Grade Comparison Table

Region / StandardUNS (USA)EN/DIN (Europe)JIS (Japan)GB (China)
Equivalent GradeS430001.4016SUS43010Cr17


Chemical Composition Table (%)

GradeC (Max)Mn (Max)Si (Max)P (Max)S (Max)CrNi (Max)
4300.121.001.000.0400.03016.0 - 18.00.75


Mechanical Properties Table (Annealed State)

Tensile Strength, Rm (MPa)Yield Strength, Rp0.2 (MPa)Elongation, A50mm (%)Hardness (Brinell)Hardness (Rockwell B)
≥ 450≥ 205≥ 22≤ 183 HBW≤ 89 HRB


Physical Properties Table

Density (g/cm³)Melting Point (°C)Thermal Conductivity (W/m·K)Specific Heat (J/kg·K)Modulus of Elasticity (GPa)
7.751425 - 151026.1460200


Quick Links

Packaging Shipping

Packing: seaworthy wooden pallets,water proof paper,pvc film,interleaving paper, in 20' or 40' container or as per customers' requirements.
-- 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
-- 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)

Application

Our products are used in a wide range of applications and various industries.Below are a few of them:

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries

FAQ

Q1 : How do you control quality ?

A1 : Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q2 : How many coutries you already exported ?
A2 : Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3 : What are the advantages of your company ?
A3 : We have many professionals, technical personnel, more competitive prices and best after-dales service.



Q4: Can you provide sample ?
A4: We can provide the samll samples in stock for free, as long as you contact us.Customized samples will take about 5-7days.
